Create EC2 Instance and Deploy Nodejs Application

AWS:

Amazon Web Services (AWS) is a subsidiary of Amazon that provides on-demand cloud computing platforms and APIs to individuals, companies, and governments on a metered pay-as-you-go basis. In aggregate, these cloud computing web services provide a set of primitive abstract technical infrastructure and distributed computing building blocks and tools. One of these services is Amazon Elastic Compute Cloud (EC2), which allows users to have at their disposal a virtual cluster of computers, available all the time, through the Internet. AWS’s version of virtual computers emulates most of the attributes of a real computer, including hardware central processing units (CPUs) and graphics processing units (GPUs) for processing; local/RAM memory; hard-disk/SSD storage; a choice of operating systems; networking; and pre-loaded application software such as web servers, databases and customer relationship management (CRM).

What is Amazon EC2?

Amazon Elastic Compute Cloud (Amazon EC2) provides scalable computing capacity in the Amazon Web Services (AWS) cloud. Using Amazon EC2 eliminates your need to invest in hardware upfront, so you can develop and deploy applications faster. You can use Amazon EC2 to launch as many or as few virtual servers as you need, configure security and networking, and manage storage. Amazon EC2 enables you to scale up or down to handle changes in requirements or spikes in popularity, reducing your need to forecast traffic.

Create an AWS EC2 Ubuntu Instance:

To create a new EC2 instance.
Click > EC2 dashboard. Here, If no instances are running, Click > instances and select Launch Instances.

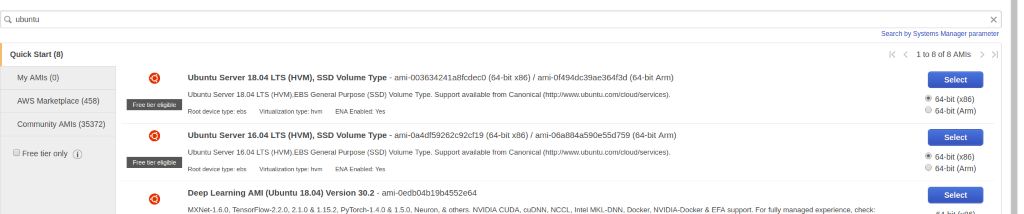

[ Step 1: Choose an Amazon Machine Image (Ami) ]
Search for Ubuntu in the search bar

Click > Ubuntu Server 18.04 LTS (HVM), SSD Volume Type, which is the latest Ami from Ubuntu

Select and use > 64-bit version.

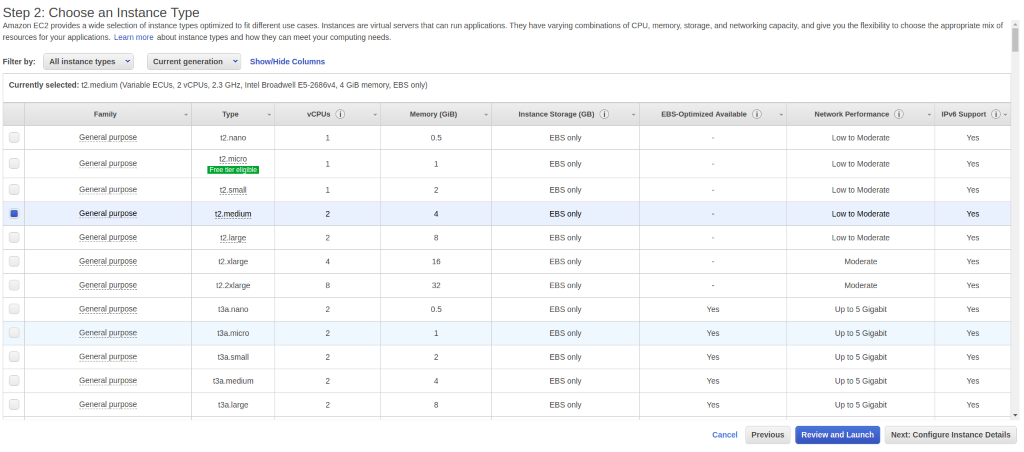

[ Step 2: Choose an Instance Type ]
We’ll create a medium instance

Use a t2.medium instance. Click> Next: Configure Instance Details

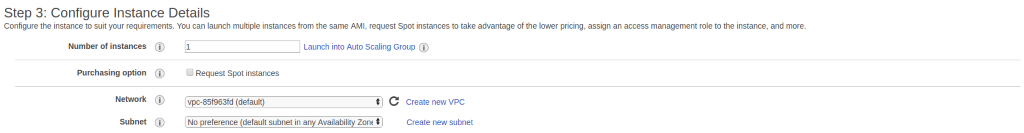

[ Step 3: Configure Instance Details ]

The number of instances is 1, now using the default VPC and the default Subnet.

Click > Add Storage

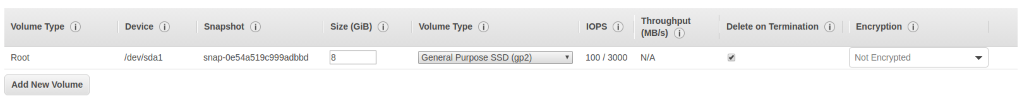

[ Step 4: Add storage ]

In this step, you’ll see that the instance has been automatically provisioned with a general-purpose SSD root volume of 8GB. (The maximum volume size we can give to a General-Purpose volume is 16GB)

AWS provides 3 types of EBS volumes- Magnetic, general-purpose SSD, and Provisioned IOPS.

Click > Add Tags

[ Step 5: Add Tags ]

Name your instance. Adding the final domain is good practice.

Click > Configure Security Group

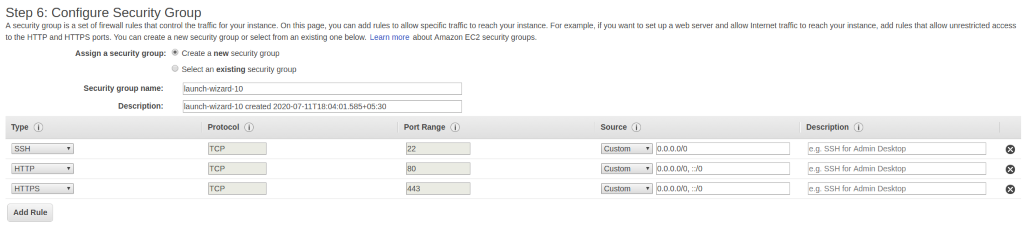

[ Step 6: Configure Security Group ]

This is an added firewall mechanism provided by AWS.

Usually, you have one security group. You can create one as per the requirement of the server.

You can define open ports and IPs

Click > Review and Launch

[ Step 7: Review and Launch ]

In this step, we can review our choices and parameters.

Click > Launch

After clicking on Launch, you will be asked to create a key pair to log in to your instance.

The select key if you already have one or create a new one.

Click > Launch Instances

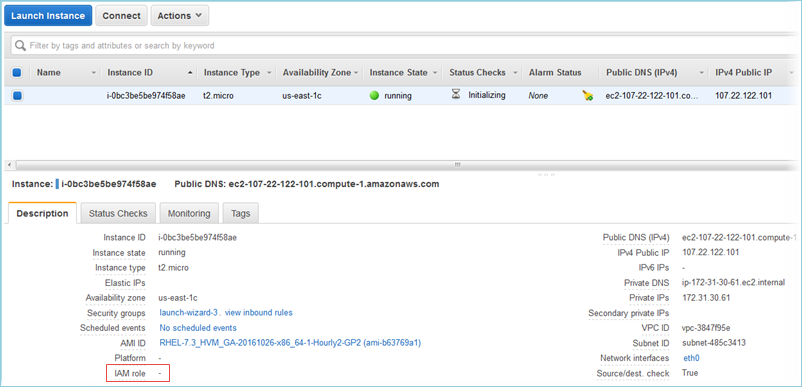

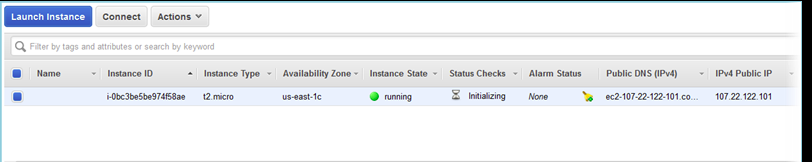

Our EC2 instance is created successfully, now SSH to Ubuntu EC2 instance and deploys NodeJS application.


Open terminal

ssh -i “path to Accesskey” ubuntu@”e2 ip”

For the first time, click yes for confirmation

[ Next Step: ]
Installing Nginx

sudo apt install nginx

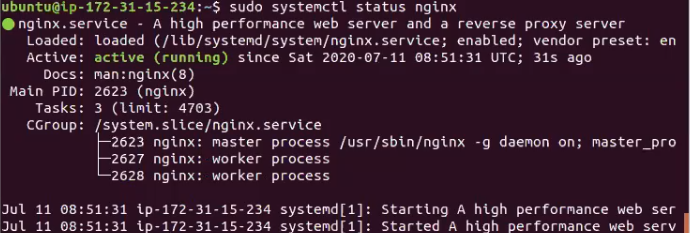

You can check status using

sudo systemctl status nginx

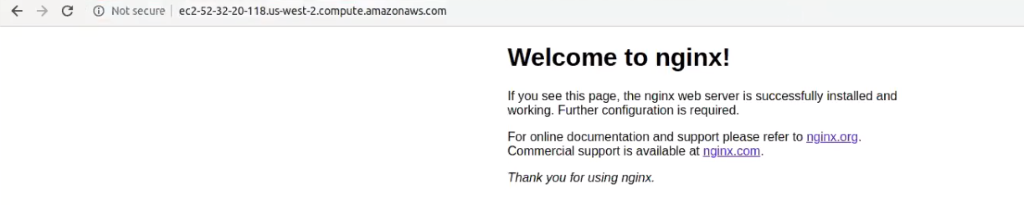

Hit the same ip in the browser to check

[ Next Step: ]
Installing Nodejs

Now we will install nodejs into the server

sudo apt install nodejs

Installing Npm

sudo apt install npm

[ Next Step: ]
Installing MongoDB

sudo apt install –y MongoDB

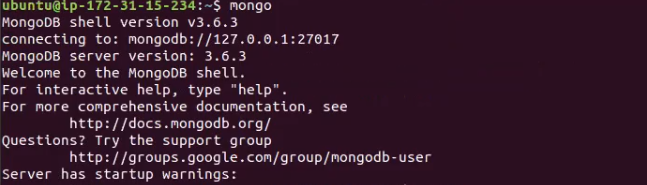

Type mongo to check MongoDB is installed successfully


[ Next Step: ]
Check-in All source code into the server

After we are done with all prerequisites.
Now we’ll clone code from the git repo
Copy HTTPS link of the repository from git/AWS code commit and clone your code
git clone “HTTPS link here.”

Enter username and password

[ Next Step: ]
Installing dependencies

Go into the code directory and install dependencies

npm install

[ Next Step: ]

Installing PM2

npm install pm2 -g

Start PM2

pm2 start server.js

Now we need to use Nginx to serve our application on another port

sudo nano /etc/nginx/sites-available/default

In location
Comment try_files  by adding # in front of that line
Add proxy_pass  http://localhost: port no here”; to next line

sudo nginx –t to check nginx configuration

Test success will be displayed for a successful configuration.

Now restart the server once using

sudo systemctl restart nginx

Every request to root will be redirected now

That’s it, your server is ready to serve requests for you! 🙂
